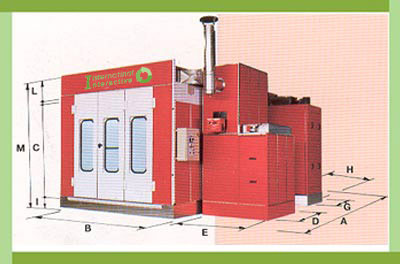

Useful Dimensions: mt. 5,90 ( length) x mt. 3,50 ( width) x mt. 2,55 ( height).

External Dimensions: mt. 6,02 ( length) x mt. 3,60 ( width) x mt. 3,42 h with metal basement.

Semiautomatic Installation: with drying time program.

Frontal Element: powder painted, with 3 wings with glasses, clear opening mt. 2,46 and mt. 2,55 high.

Lateral Walls: mm 55 thick, insulated plate panels, galvanized outside and paint power inside, double sheet with thermoacustic insulation.

Filtering Plenum: 2,70 wide and as long as the whole booth, with 3 rows of filters.

Lighting: one row of lightings elements with four fluorescent tubes in the oblique panels (no. 40 neons tubes). Frames for lights.

Motorized Dumper: (servo motor) spraying/drying phase.

Piece Holder TROLLEY and SHELF.

Basement: Metal Basement "Partial Grills". Electro forged grills for two pits and raw checkered plate ( h. 300 mm.)

Paint-Stop: Filter and frames.
Generator group -Dim. 1600x1600
›› no. 1 motor with 4,0 Kw;
›› Centrifugal fan;
›› Heat Exchanger.
›› no. 1 gas burner.
No. 1 Control Panel.
